Compact mini desktop laser with high performance!

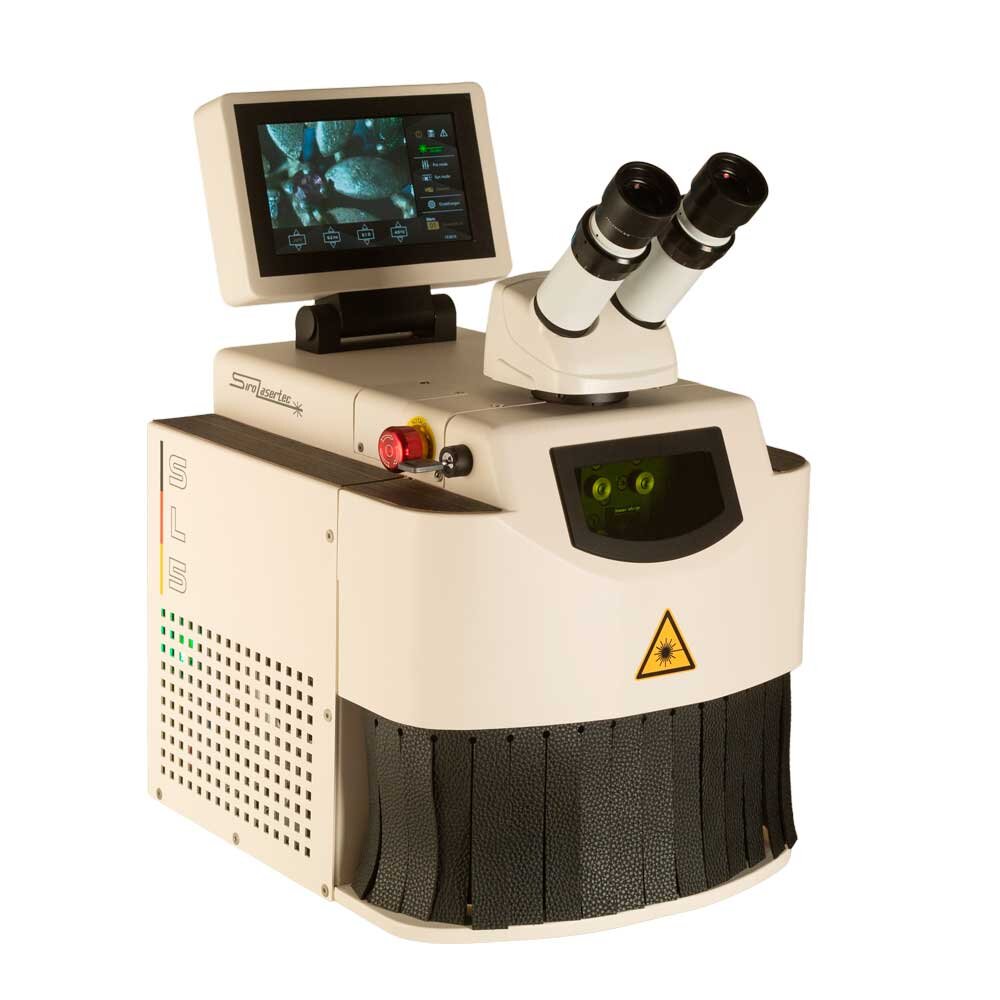

The SL5 laser welder from Siro Lasertec is a user-friendly small laser welding system that provides barrier-free access to the working chamber through the large opening on the front. As a stationary unit, the SL5 can be easily placed in even the smallest workshop or shop. With a serious average power of 30 W, it is suitable for all work with precious metals and even silver.

The new SL5 is equipped with camera, touchscreen and LED light as standard. With preset welding parameters for gold, silver, platinum, stainless steel, titanium and bronze, you quickly have the desired welding settings at hand to process the corresponding alloy. Through further individual fine-tuning, each welding can be adapted to your task.

Technical data:

• Max impulse power: 2,6 kW
• Max average power: 30 W
• Pulse frequency: 1 - 20 Hz
• Pulse frequency: 0,5 - 10 ms
• Welding point: ø 0,2 - 2,0 mm
• Power: 230 V
• Dimensions: 360 x 300 x 490 mm (l x w x h)
• Weight: 22 kg

ATTENTION! To ensure problem-free operation, a grounded power line of 220 - 240 V with a 16 A fuse is required.

If you would like more information, you are always welcome to contact us. If you are interested in a demonstration or want to test the laser yourself, you are welcome to book an appointment with us in Vallensbæk (DK).
