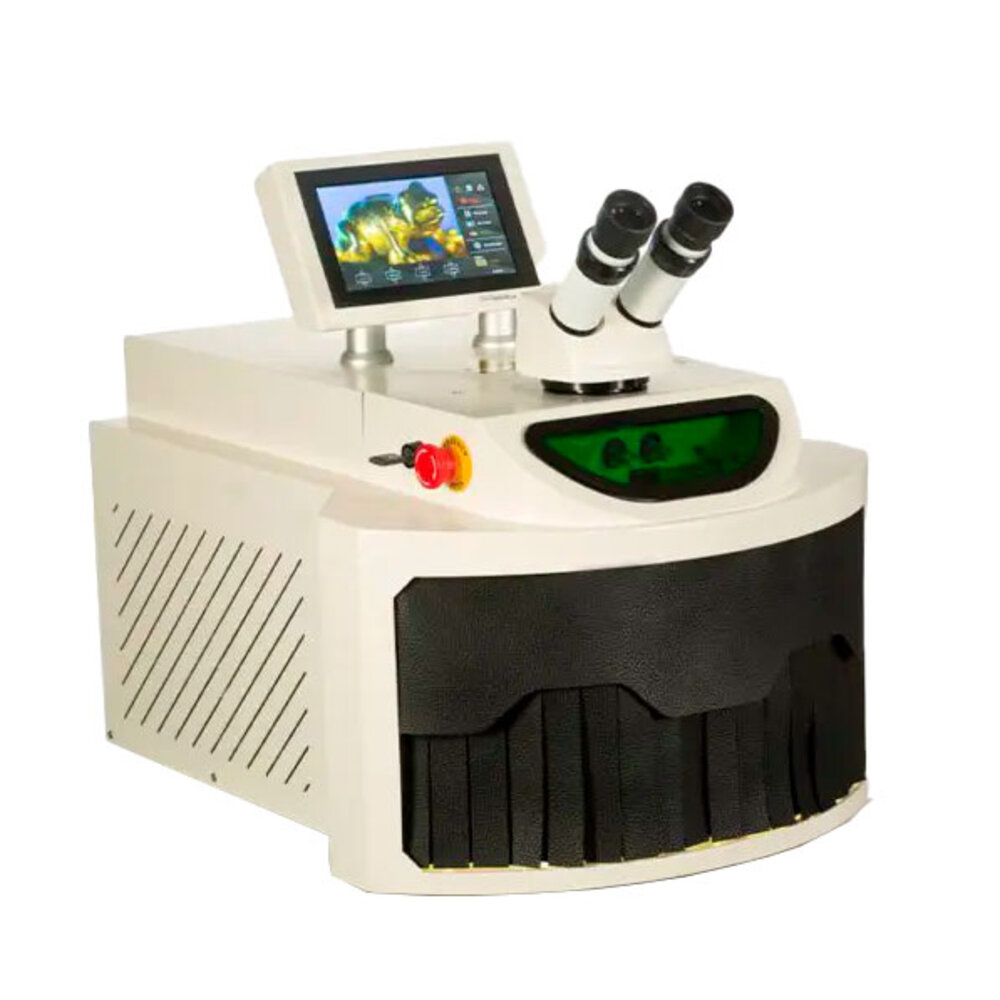

SLX is an easy-to-use welding laser system that provides barrier-free access to the work chamber through the large opening on the front. As a stationary unit, the SL30 can be easily placed even in small workshops and is suitable for continuous operation. With an average power of 60W, small series can be processed without problems.

The new SLX is equipped with a camera and optional additional output for external screen, dimmable LED ring light, as standard. Unlike most other laser welders, the SLX has a robust steel housing that provides better shielding against electromagnetic radiation. All laser parameters can be easily fine-tuned to the respective welding task using the joystick panel in the work chamber or on the touch screen. Welding parameters that are used continuously for standard operations can be easily saved in the laser's data memory and can be quickly recalled when needed.

Technical data:

• Max impulse power: 3,7 kW
• Max average power: 60 W
• Pulse frequency: 0 - 20 Hz
• Pulse duration: 0,5 - 20 ms
• Welding point: 0,2 - 2,0 mm
• Dimensions: 600 x 450 x 500 mm
• Weight: 40 kg

NOTE! To be able to ensure trouble-free operation of the laser, a grounded power line of 220 - 240 V with 16 A fuse is required.

For further information don’t hesitate to contact us.
