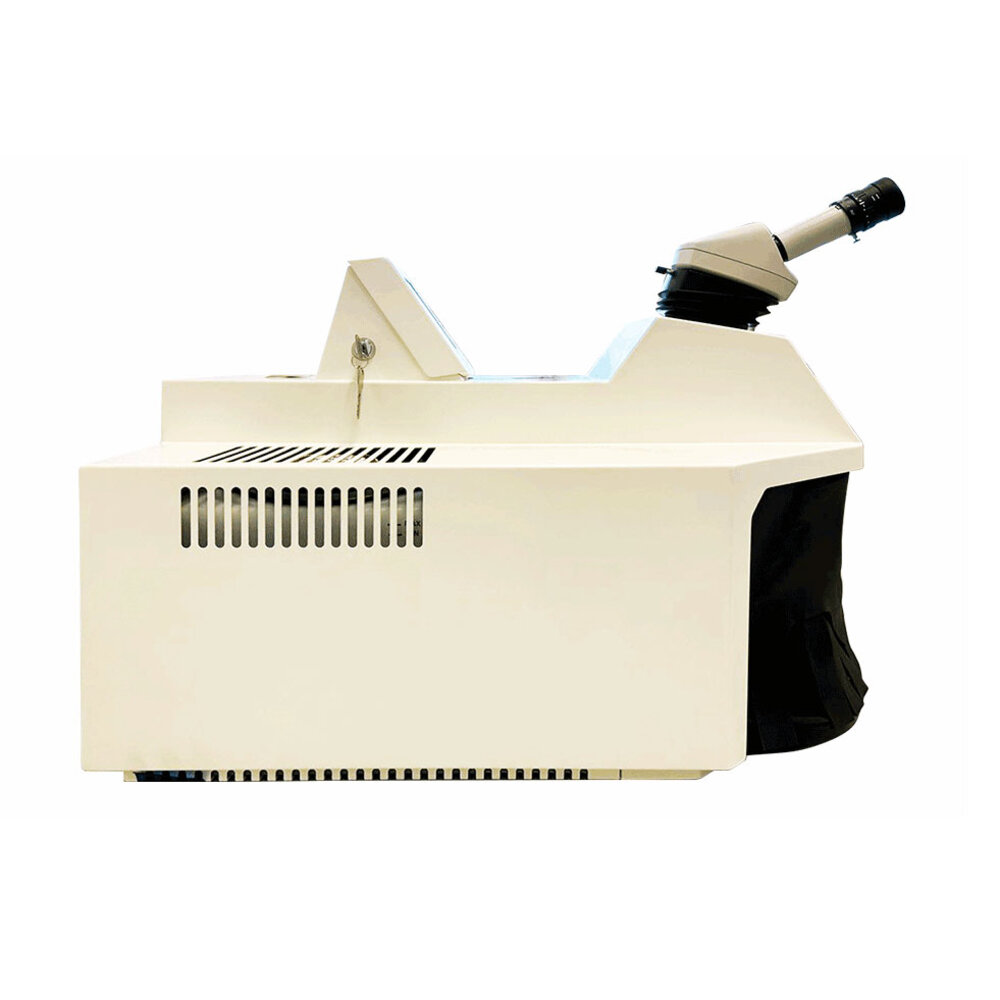

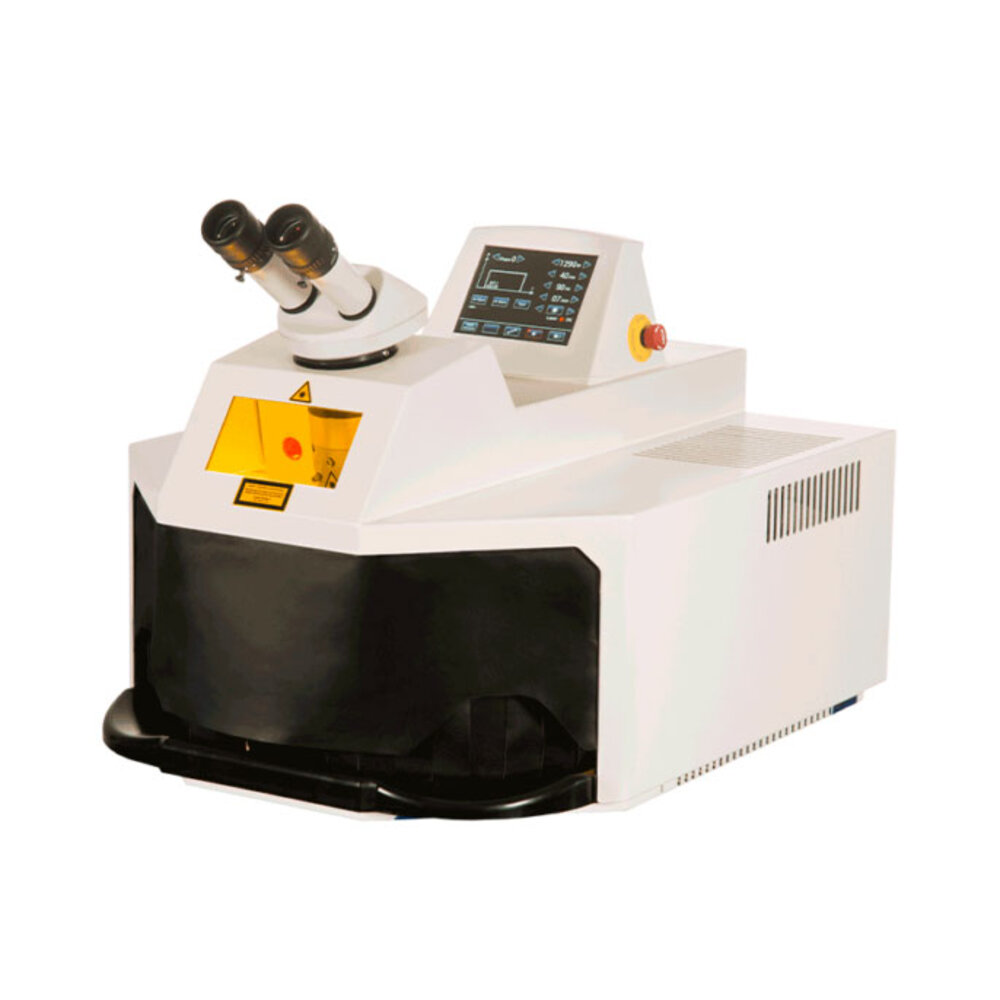

The powerful SL40 is the successor model to the proven SL20 and, like it, is characterized by its extremely compact design. Unlike most other laser welding machines, the system has a robust steel housing, which provides better shielding against electromagnetic radiation. The high-quality stereo microscope magnifies 15x for optimal observation of the welding process. With 5 litres of water cooling, the SL40 is also suitable for continuous operation.

The compact design enables the machine to be installed almost anywhere and can be quickly put into use. The SL40 is primarily intended for repairs, assembly, and serial production. The laser's properties guarantee optimal welding results as well as ease of use, good ergonomics, and safety.

Technical data:

• Peak Pulse Power: 7 kW
• Max Average Power: 60 W
• Pulse frequency: 0 - 25 Hz
• Pulse Duration: 0,5 - 20 ms
• Spot Diameter: 0,2 - 2,0 mm
• Dimensions: 630 x 510 x 440 mm


Options:

• Micro Weding: 0,05 – 0,2 mm
• Pulse frequency: 0 – 50 Hz
• Leica microscope
• Ergo Wedge: 5˚ - 25˚
• Hight adjustable table for all Siro desktop laser welder

NOTE! To be able to ensure trouble-free operation of the laser, a grounded power line of 220 - 240 V with 16 A fuse is required.

For further information don’t hesitate to contact us.
