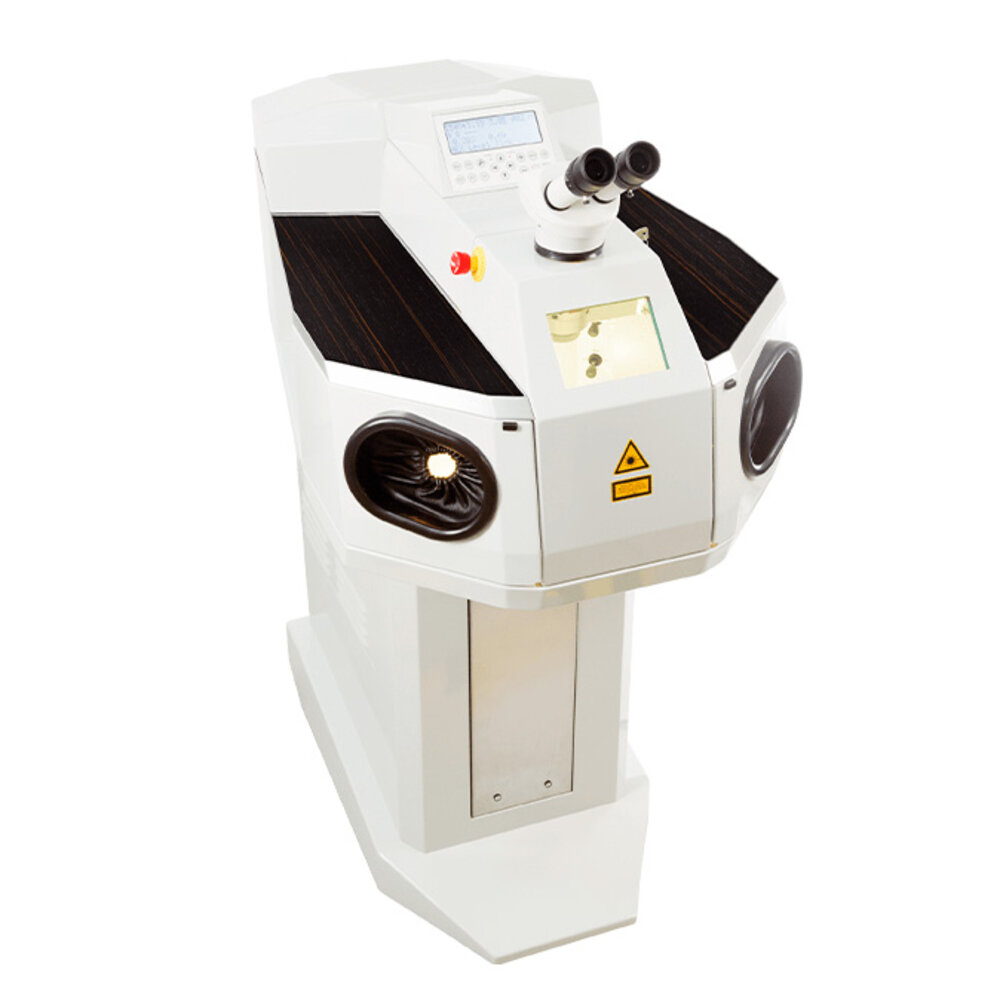

Welding laser system SL 75 Tornado, Siro Lasertec

Article no. SI50010
Please log in to see prices and place your order.
Info
Description:

The SL 75 Tornado laser-welder is equipped with a double flashlamp system that offer a maximum pulse power up to 12 KW. The SL75 Tornado is perfect for welding materials that require high melting energy and is today the strongest and fastest handheld laser in its class. With up to 75 W and 25 welding spots/sec (option: up to 50 welding spots/sec) it is excellent for series production and especially good for silver, copper and fine gold. Two internal heat exchangers ensure sufficient cooling for this enormous power.



A working chamber with removable bottom provides additional flexibility in the handling of large work pieces.



Technical data:

  • Peak pulse power: 12 kW
  • Max average power: 75 W
  • Pulse frequency: 0 - 25 Hz
  • Pulse duration: 0,5 - 20 ms
  • Spot diameter: 0,2 - 2,0 mm
  • Dimensions: 965 x 815 x 1270 mm
  • Weight: 145 kg
  • Parameter storage: 39



Options:

  • Micro welding: 0,05 – 0,2 mm
  • Ergo wedge 5˚ - 25˚
  • 50Hz



ATTENTION! In order to ensure problem-free operation of the laser, a grounded power line of 220 - 240 V with a 16 A fuse is required.



If you would like more information, you are always welcome to contact us.
