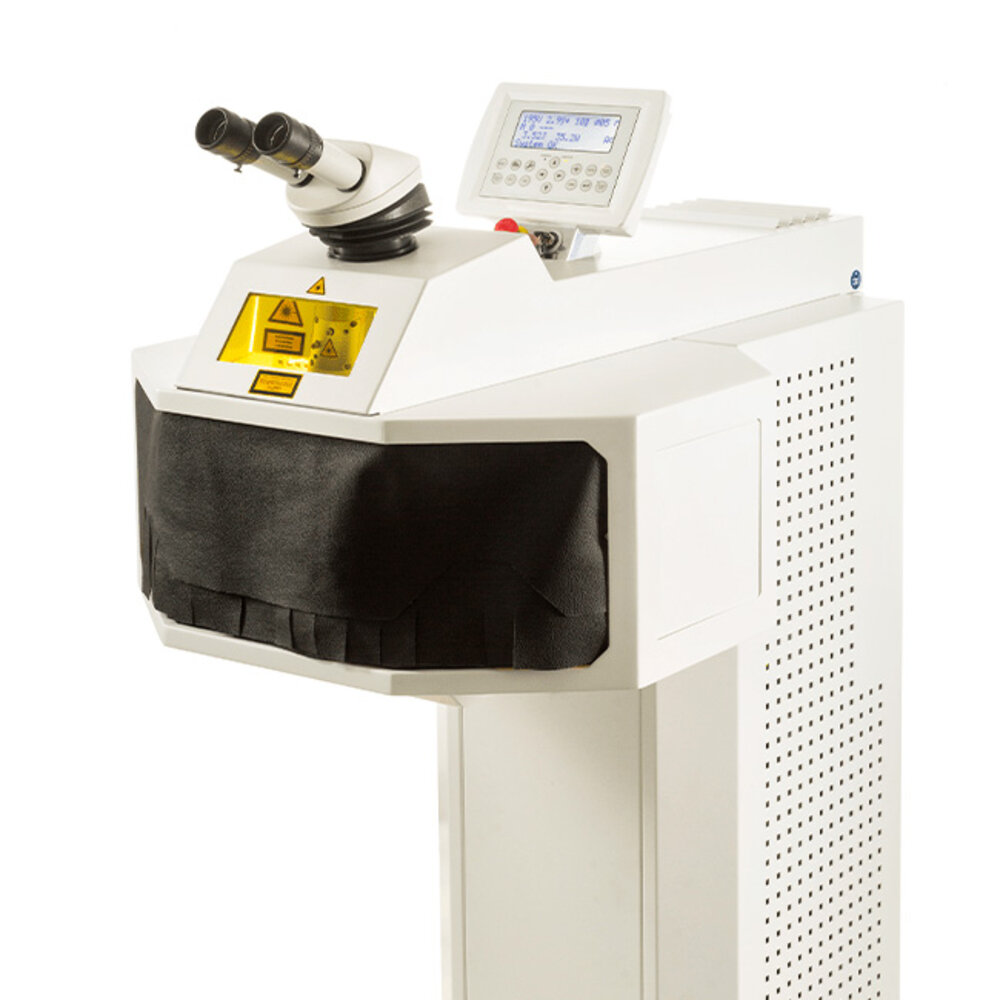

The new, highly convenient SL120 broadens our hand welding portfolio. You can process long, bulky and even large-size workpieces quickly and flexibly. Thanks to the generous available space the laser is also ideal for industrial production, as several processing steps can be carried out in the working chamber.

The working chamber can be loaded via various laser-safe openings: at the front, a large opening provides easy access to the spacious welding chamber. Side slots allow for the positioning and safe welding of longer components in the machining area. For bulky objects the side flaps can be removed for even more flexibility. The leather laser safety curtain provides laser protection, so that the laser system can be set up in any working environment.

The flexible laser system can also be equipped with a fi ne welding option or with a rotary axis. The SL120 has a power output of 120 W, so that with its 50 Hz pulse rate this model can also be used for laser polishing.

Technical data:

• Peak pulse power: 10 kW
• Max average power: 120 W
• Pulse frequency: 0 - 50 Hz
• Pulse duration: 0,5 - 20 ms
• Spot diameter: 0,2 - 2,0 mm
• Dimensions: 600 x 960 x 1300 mm
• Weight: 91 kg
• Parameter storage: 39

Options:

• Micro welding: 0,05 – 0,2 mm
• Ergo wedge 5˚ - 25˚
• Rotary axis

ATTENTION! In order to ensure problem-free operation of the laser, a grounded power line of 220 - 240 V with a 16 A fuse is required.

If you would like more information, you are always welcome to contact us.
