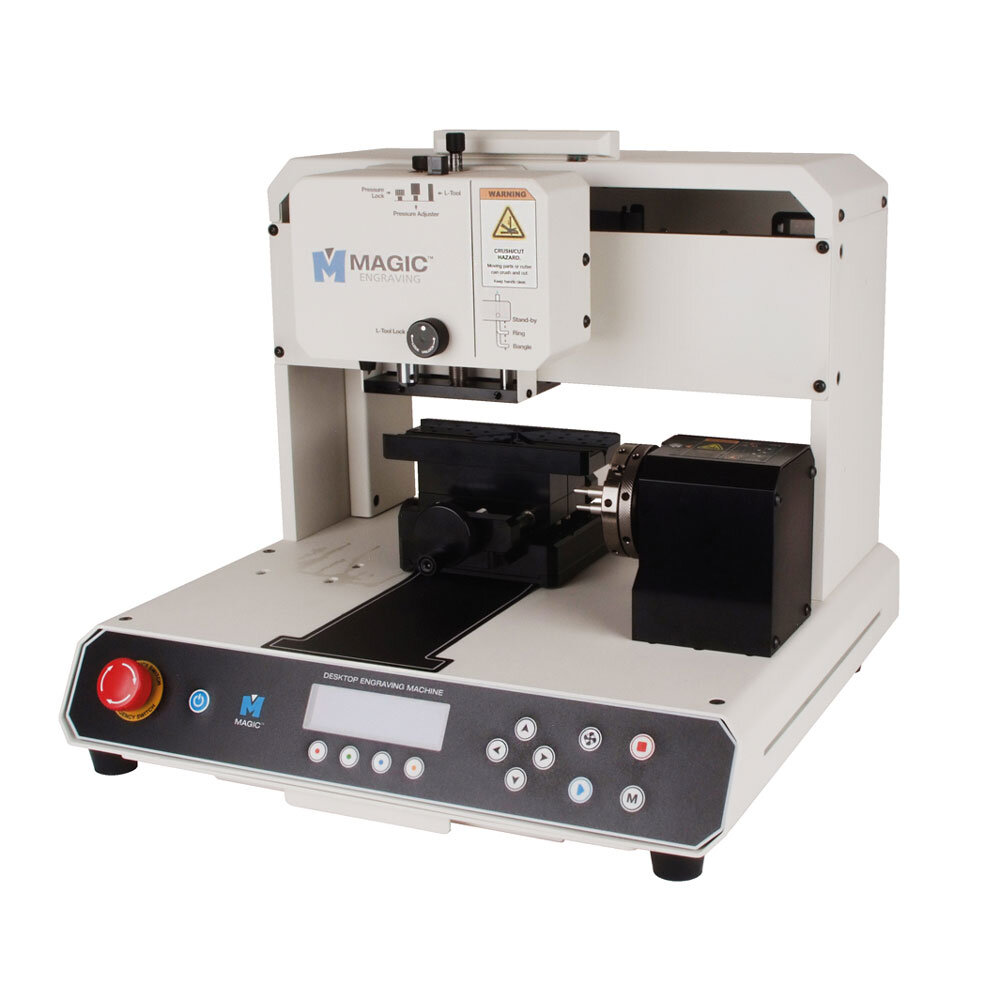

Magic-E7 is a 3rd generation engraving machine with revolutionary functionality, structural stability, performance and design based on a CNC engraver application knowhow accumulated during the 1st through 2nd generations.

Product features:

• Compact and modern design
• Bluetooth wireless connection
• Dedicated software easy to use
• Camera
• Auto measurement
• Pressure adjuster
• Simple engraving position control
• Stronger cutting performance and higher resolution

The following accessories are included:

• Multiperformance clamp set
• Rotary clamp set
• Wrench tool set and bolts
• Ruler
• Diamond tips (ø 3 mm and ø 4 mm shaft)
• Endmill cutter ø 0,6 mm (ø 4 mm shaft)
• Program installation USB
• Manual (english)

Specifications:

• Size: 402,5 mm(W) x 376,5 mm(D) x 352,2 mm(H)
• Flat engraving area: 112 mm(X) x 100 mm(Y) x 38,5 mm (Z)
• Rotary outer ø: 17,5 - 80 mm
• Rotary inner ø 14 - 75 mm
• Max material hight: 60 mm
• Weight: 26 kg
• Resolution: XY: 0,0025 mm, Z: 0,000625 mm, A: 0,028125˚(grader)
• DC motor output: 38W
• Spindle: 9.000 - 15.000 rpm
• Bluetooth SPEC: Bluetooth LE module/Bluetooth 5.0
• Voltage: 100-240V, 50/60Hz
