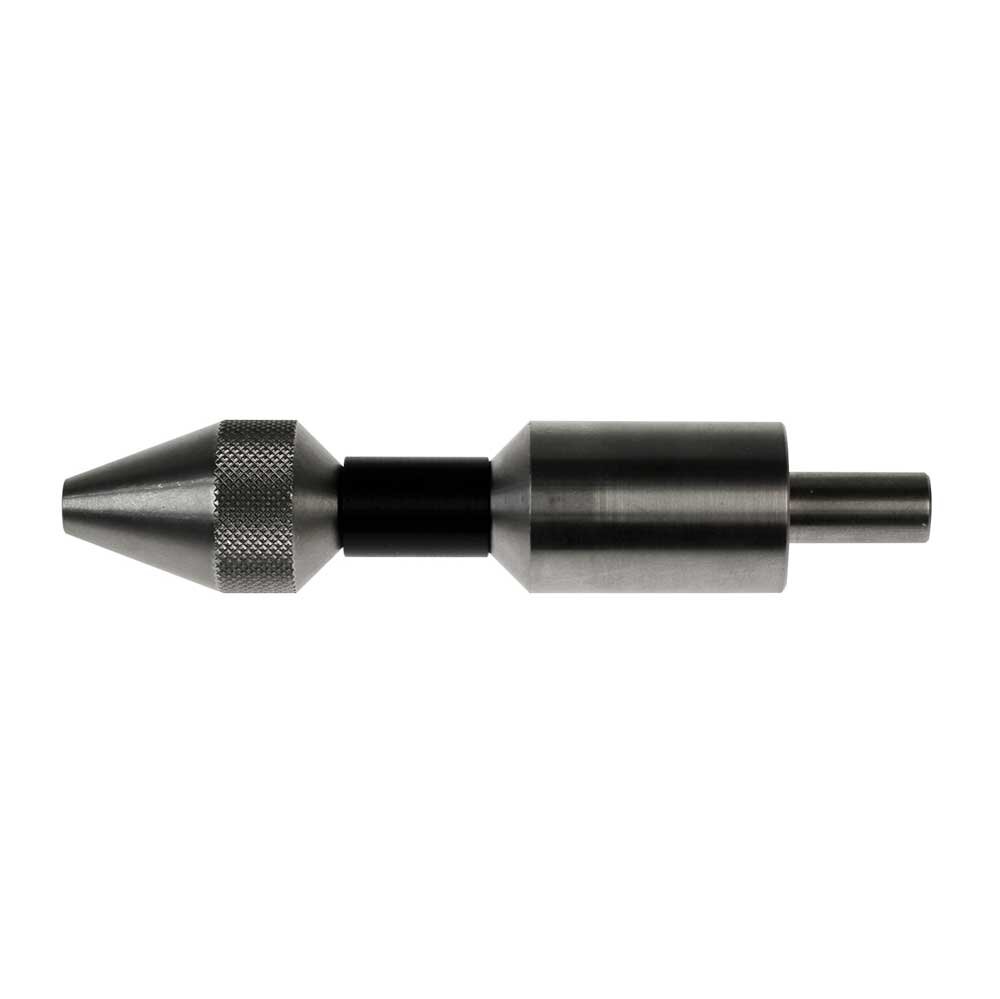

This ring engraving adapter is designed to firmly hold rings during the cutting process.

The adapter is compatible with the Magic 70 and Magic-S7 engraving machines.

How to use:

1. Turn the fixing nut anticlockwise to detach the ring adapter.
2. Fix a ring on the black collet to the correct size.
3. Put the collet onto the ring adaptor and turn the fixing nut clockwise to tighten.
4. Loosen the chuck finger all the way and set the ring adaptor fixed with the ring.
5. Turn the lever on the engraving machine to the left to loosen and put the pen clamp in, then turn the lever to the right to set it.
6. Turn the pen clamp knob clockwise to stabilize the ring adapter during engraving.
