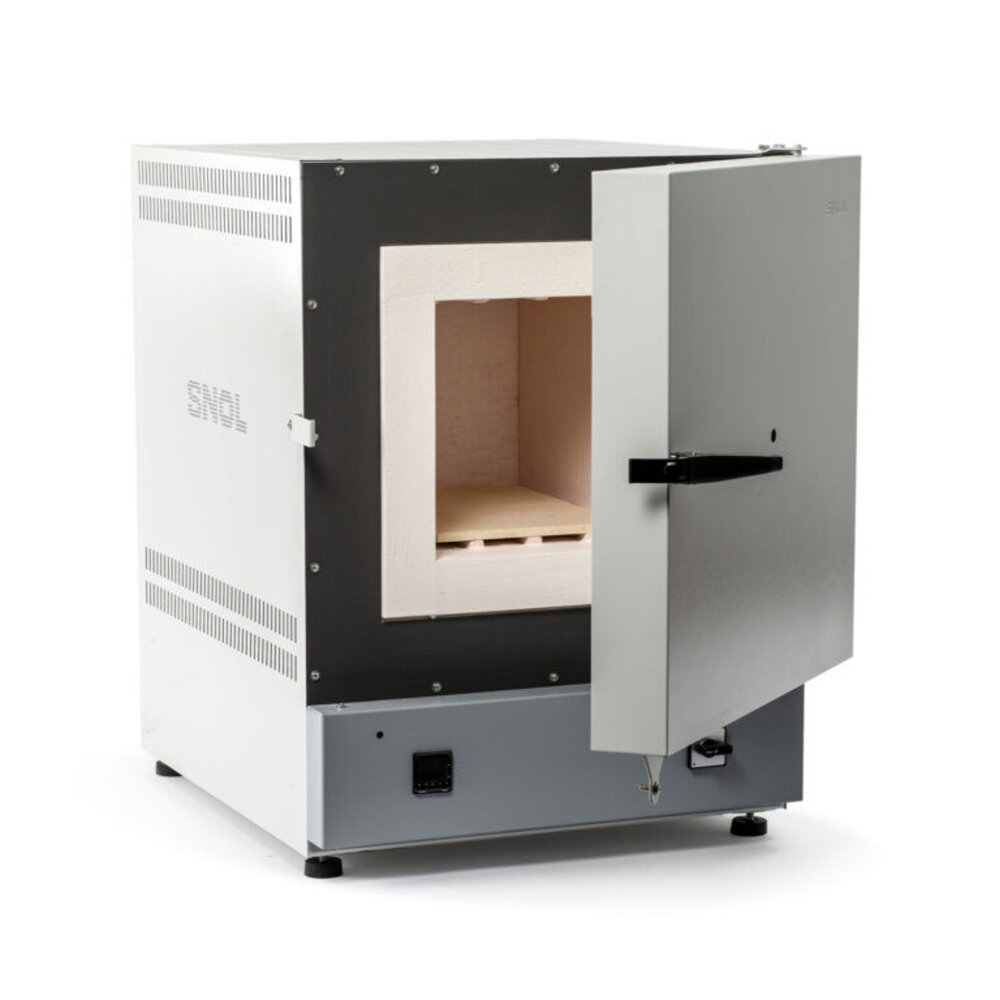

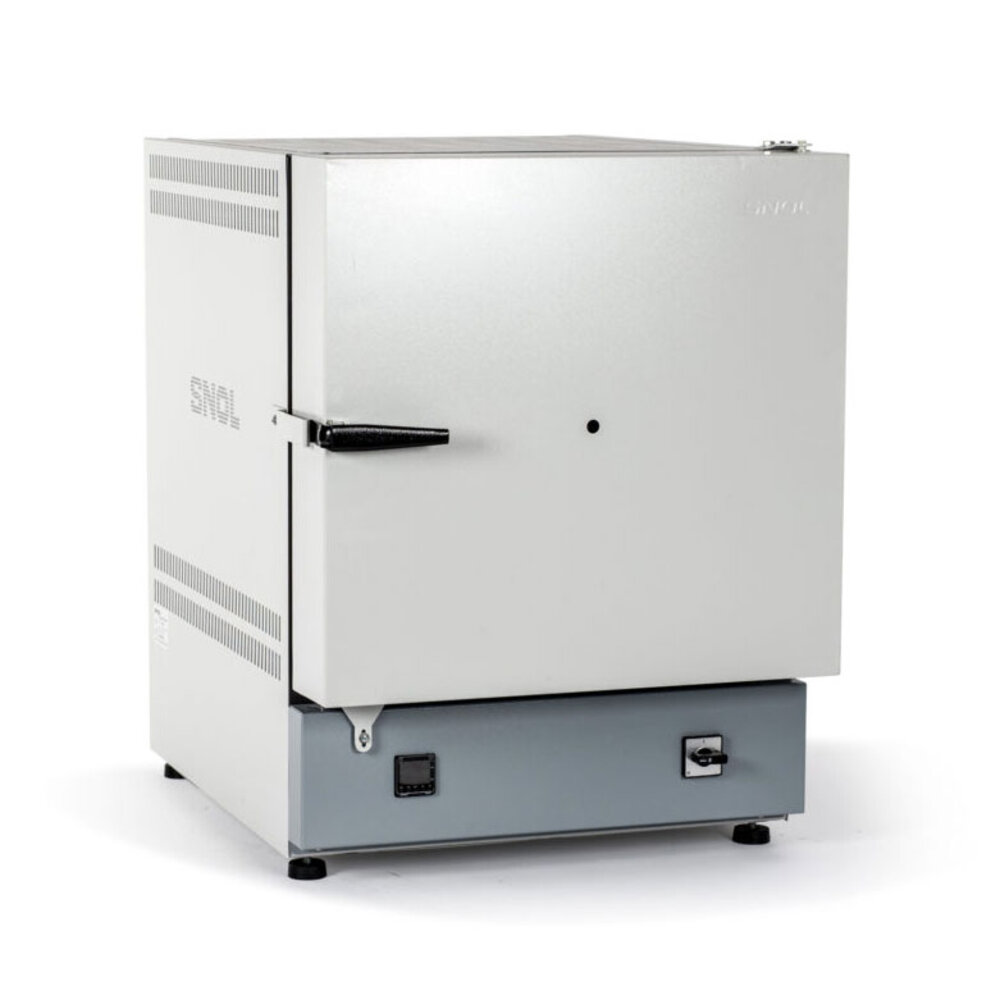

This burnout furnace is designed for flasks up to 240 mm hight and is equipped with:

• Omron controller E5CC-T
• High-quality, ecological thermal insulation material
• Door safety interlock switch (door opens sideways)
• Continuous air change in the chamber
• Fan-assisted chimney for air extraction
• Ceramic bottom-plate
• Low power consumption
• Short heating up / cooling down period
• Housing: powder painted grey plates

Options:

• Metal tray (SN10735)
• Over Temperature Protection - Omron E5GC (SN10200)
• Process observation window ø 35 mm (SN10100)
• Additional ceramic bottom-plate (SN10730)
• Table for supporting the furnace (SN10750)

Technical data:

• 8 programs with 32 step (ramps) / each
• Chamber dimensions: B 300 x D 405 x H 275 mm
• Outer dimensions: B 645 x D 920 x H 835 mm
• Weight: 98 kg
• Volume: 30 liter
• Power: 3,4 kW
• Max. temperature: 1100° C
• Voltage: 230 V / 50Hz
• Låg energiförbrukning
• CE certified
• 1 year warranty
