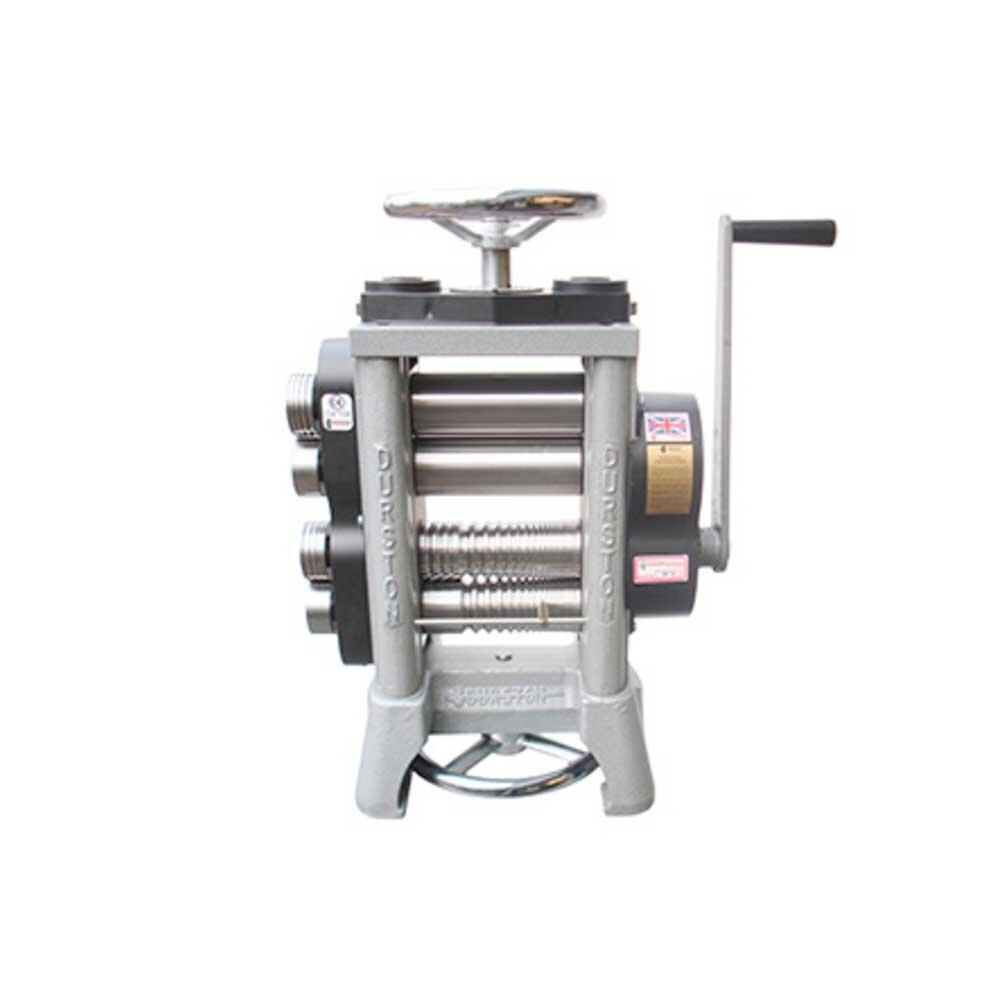

The D4 158 mm Durston rolling mill is more than just a larger D2. Besides the addition of lower side rolls this rolling mill has thicker output rolls and a reduction gear system that allows for the use of a second handle if faster roll speed is required.

The primary design feature of the D4 158 mm is the larger 158 mm wide roller width.

Side frames manufactured from a one piece cast iron construction for optimal strength and rigidity.

Roller bearings are incorporated in the rolling mill which makes rolling incredibly easy and smooth.

Specifications:

• Roulette:
  • Width: 158 mm
  • Diameter: 60 mm
• Halfround roulette: 4, 3, 2 & 1.5 mm / 8, 6 & 3 mm
• Wire: 10.00-1.00 mm, halfround: 7, 6 & 5 mm
• 19 profiles for wire
• Max width of sheet: 158 mm
• Max thickness of sheet: 6 mm
• Gear, lever A: sheet 11-1, wire 5-1
• Gear, lever B: sheet 5-1, wire 2.5-1
• Dimensions: 430 x 200 x 600 mm
• Weight: 85 kg

Durston – more than 50 years of experience

Durston is the world leader in precision rolling mills, with more than 50 years of experience producing rolling mills primarily for the jewelry industry. These power mills are the highest quality and most durable power rolling mills on the market, featuring attractive design and robust components that are built to last forever.
