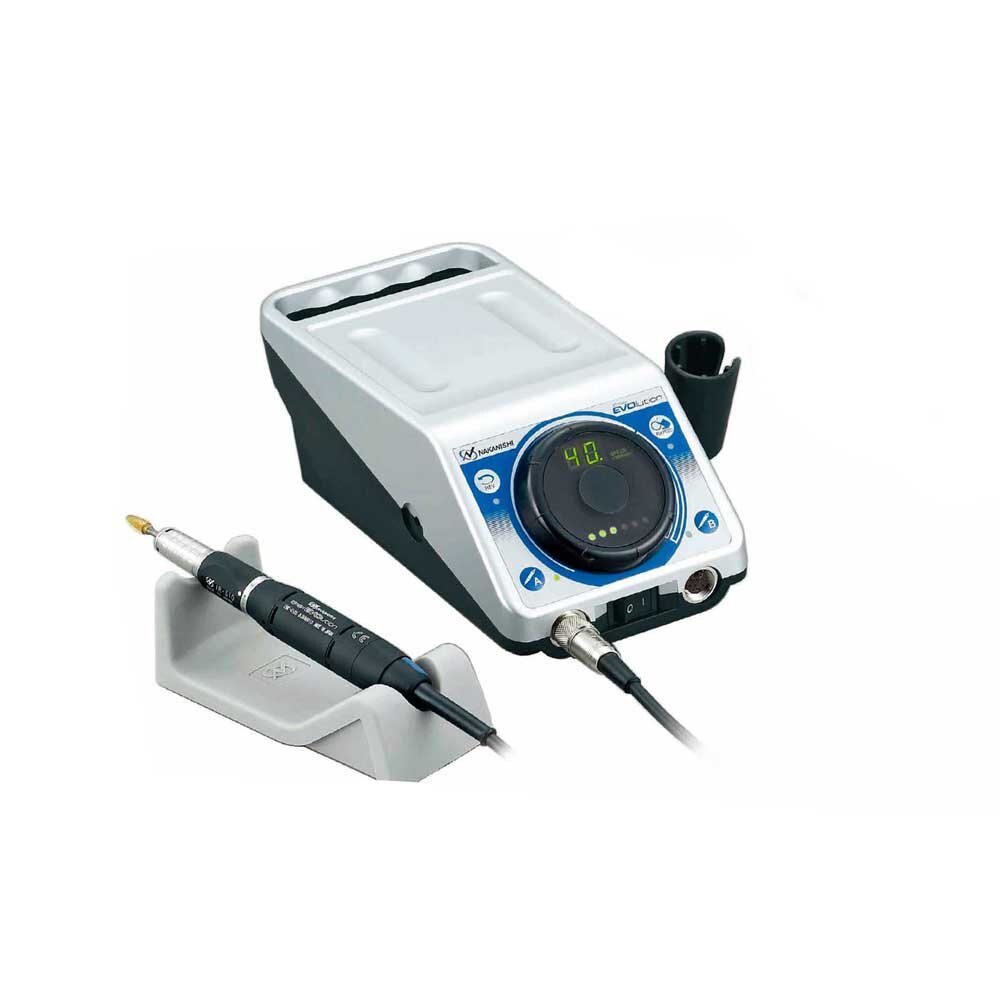

This high performance brushless motor with compact general-use ring type handpiece is perfect for precision work and provides superior quietness and smoothness from low speed to high speed.

The controller is equipped with Forward / Reverse Select Switch and Auto Cruise Function. While using foot controller for work, anyone could fix the motor at any speed by the embedded motor switch. Once speed is set, foot controller is not required. This function eliminates foot fatigue during operation.

2 Motors of A and B can be connected, and select the suited motor for work situation.

Upgraded Digital Display. EVOLUTION on Speed Control Volume with Flash Load Indicator.

An exclusive new feature of the Emax EVOlution, the FiXpeed® system allows everyone easily to fix speed of motor A and B independently prior to operate. For example motor A can be set to maintain the speed set by the FiXpeed® system while motor B has variable control using a foot pedal. This function brings for unprecedented workability.

Technical details:

• Speed: 1.000 - 40.000 r/min.
• Max. power: 73W
• Max. torque: 4.3 cN·m
• Collet: ø 2,35 mm and ø 3,0 mm
• Length (handpiece): 64,2 mm
• Power Source: 230 V / 50 Hz
• Dimensions: 130 x 254 x 97 mm
• Weight: 2,3 kg

NB! The foot pedal is NOT included.
