ECO-Maxi base unit only, OTEC
Article no. OT10100
Please log in to see prices and place your order.
Info
Description:

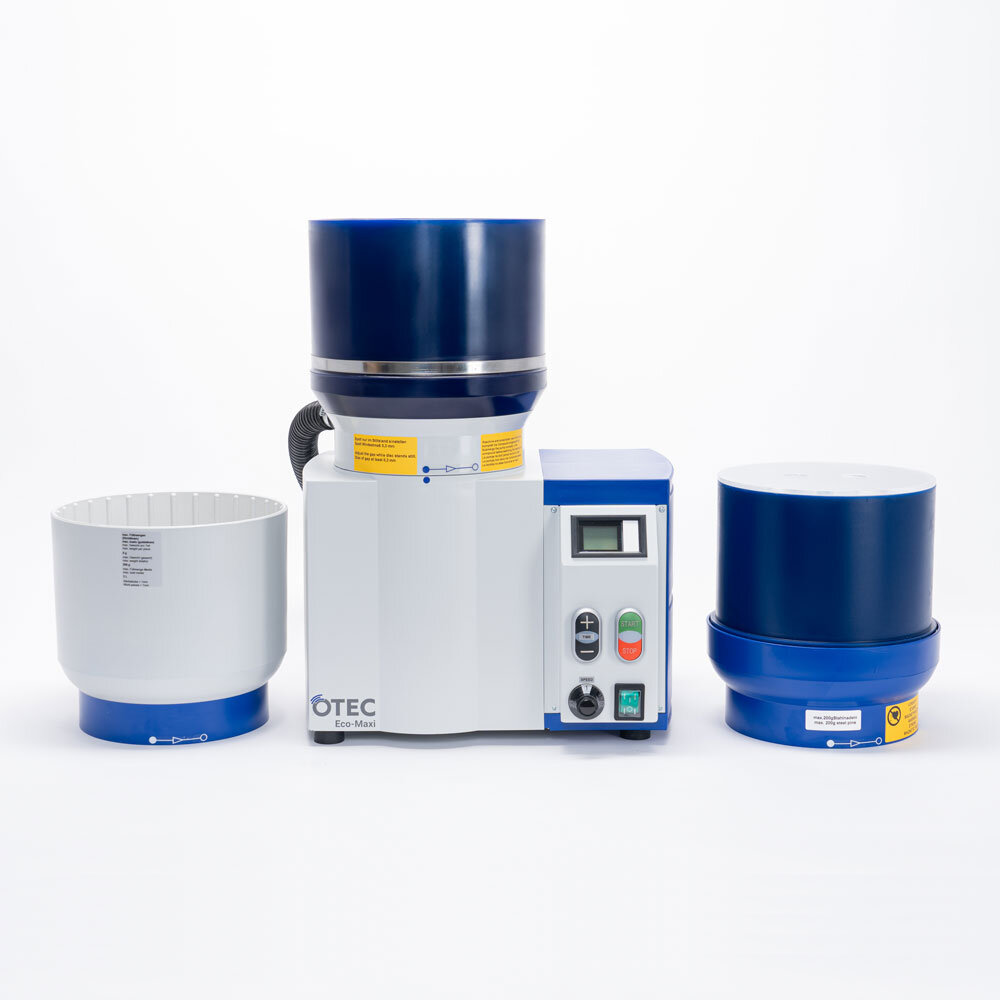

The ECO-Maxi basic is the drive unit without process containers. It is designed in such a way that all three processes are optimally supported. Depending on the chosen process container you can either run the magnetic polishing process, the wet grinding process or the dry polishing process – all with the same drive unit.
Features:

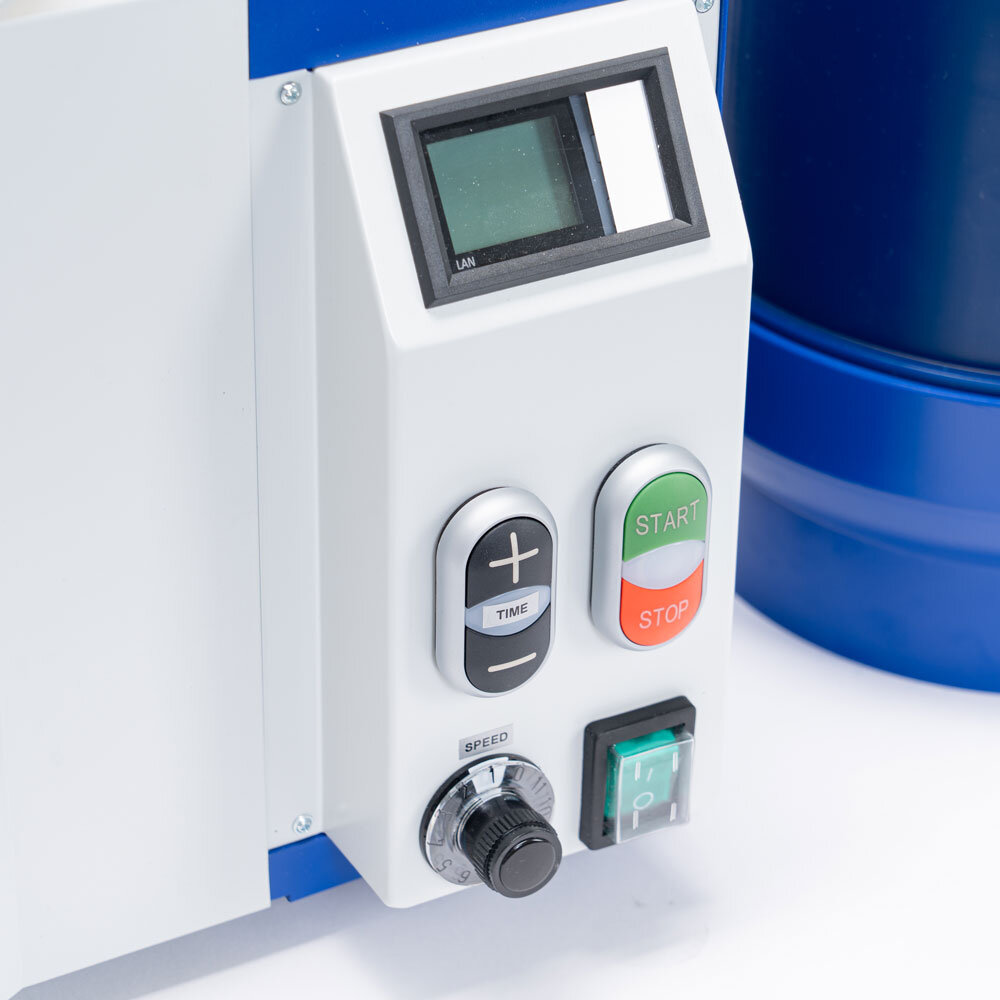

- LC display showing speed and process time
- Speed control via frequency converter
- Automatic container detection
- Automatic direction change
- Bayonet fitting for containers
The drive unit can be equipped with:
- Drive Ø 225 mm for magnetic polishing process (weight: 5 kg)
- 6 l process container for wet processing incl. dosing pump and waste water tank (5.5 kg)
- 6 l process container for dry processing (weight: 2.5 kg)
Technical details:
- Dimensions: 360 x 350 x 310
- Weight: 16 kg
- Power: 0,8 kW
- Voltage: 230 V
- Frequency: 50/60 Hz
Type: Disc Finishing Systems
