Marking, engraving or cutting – lasers are versatile. But regardless of whether YAG, CO2 or ultrashort pulse lasers are used, they all produce laser fumes. The health-threatening smoke or laser dust contains pollutants that dissolve from the processed material, such as cobalt, nickel or chromium. Laser fumes can damage lungs as well as the respiratory tract and can be carcinogenic. Optimal protection against laser fumes and laser dust is only provided by using filter and extraction systems.

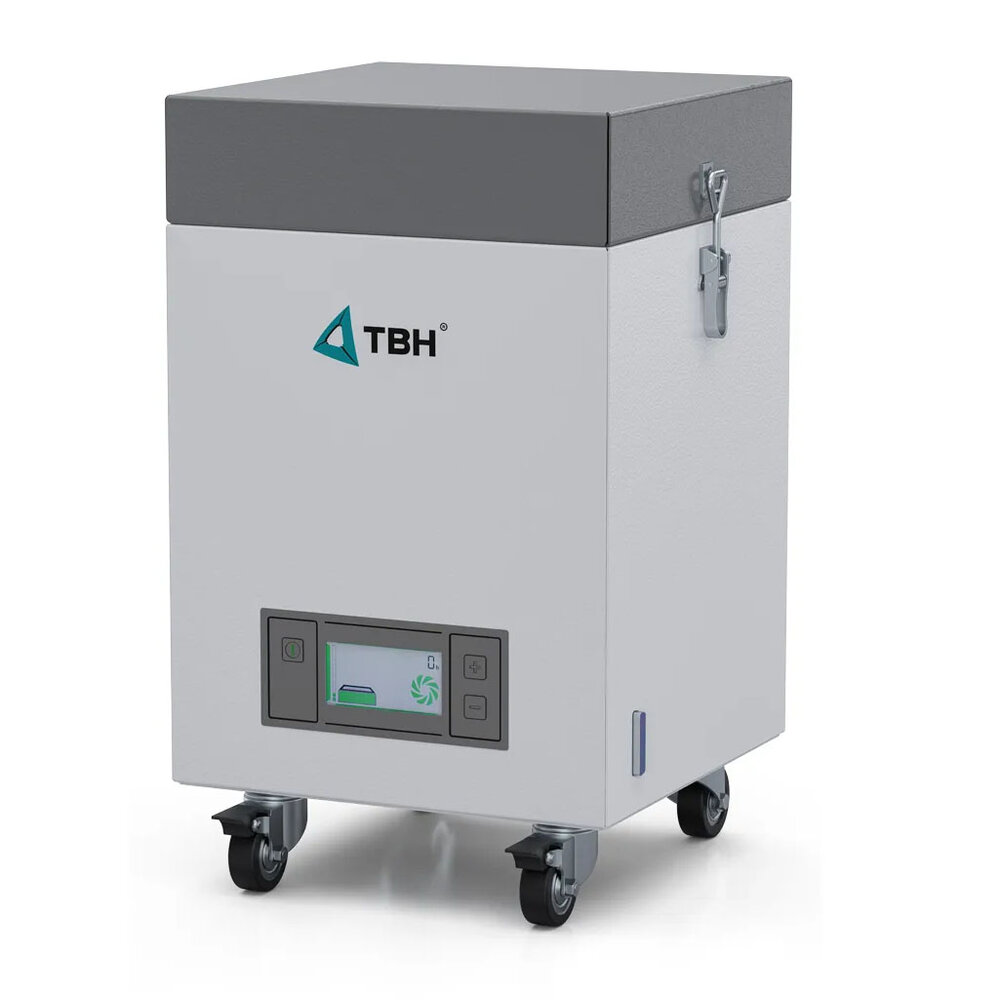

The BF5 extraction system is equipped with 2-stage filter (particle filter H13 + activated carbon filter) which is specially developed for extraction and filtration of laser fumes and ensures a clean and safe working environment.

Tekniska detaljer:

• Air volume flow: max 200 m³/h
• Effective air volume flow: 20 – 200 m³/h
• Max static pressure: 6000 Pa
• Voltage: 100-240 V
• Frequency: 50/60 Hz
• Engine power: 0.6 kW
• Type of drive: brushless motor
• Sound level: approx. 62 db(A)

Please contact us for more information.
