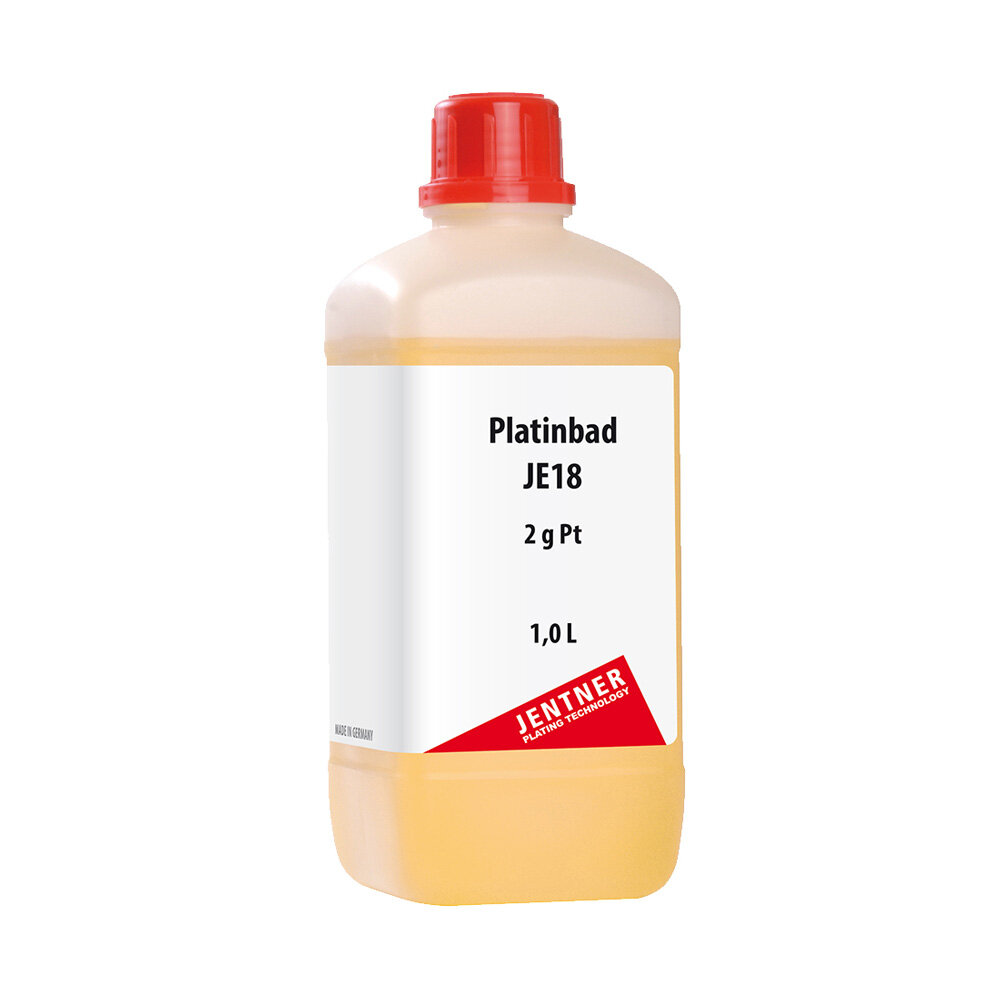

The Platinum Bath JE18 is an acidic plating bath that deposits bright, gloss-sustaining, hard layers.

Ready to use bath.

Technical information:

• Platinum content 99,9%: 2 g Pt/l
• Volume: 1 liter
• pH-value: <1
• Voltage: 1,7-2,4 Volt
• Bath temperature: 30°C
• Exposition time: 5-15 min.
• Anodes: Platinized titanium or MOX
• Current density: 1,0 – 1,5 A/dm2
• Deposition rate: 8 - 11 mg/Amin, approx. 0,07 µ/min
• Hardness: approx. 500 HV
• Layer thickness: max. 1,0 µ
• Layer density: approx. 21 g/cm3

Safety Data Sheets

As a user of chemical substances and mixtures, it is important to have safety data sheets on hand.

> Download all our safety data sheets here

(The link requires login)
