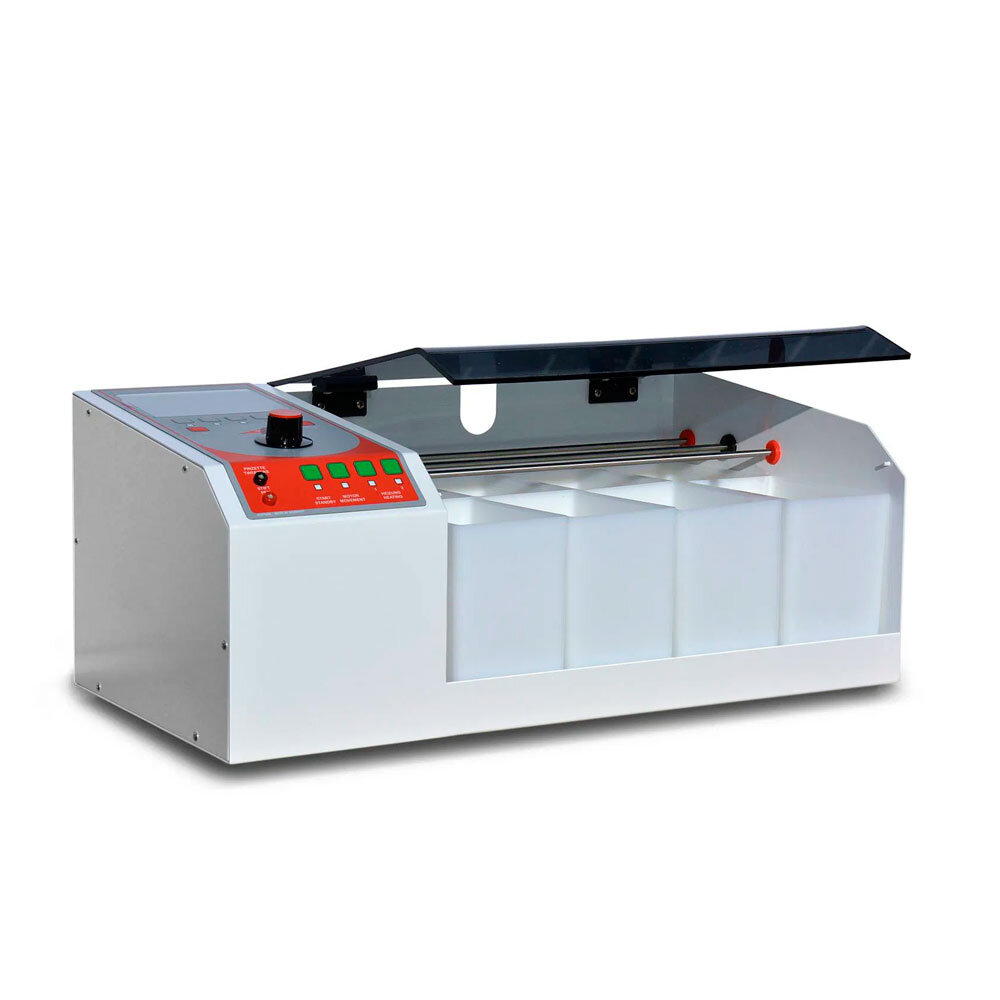

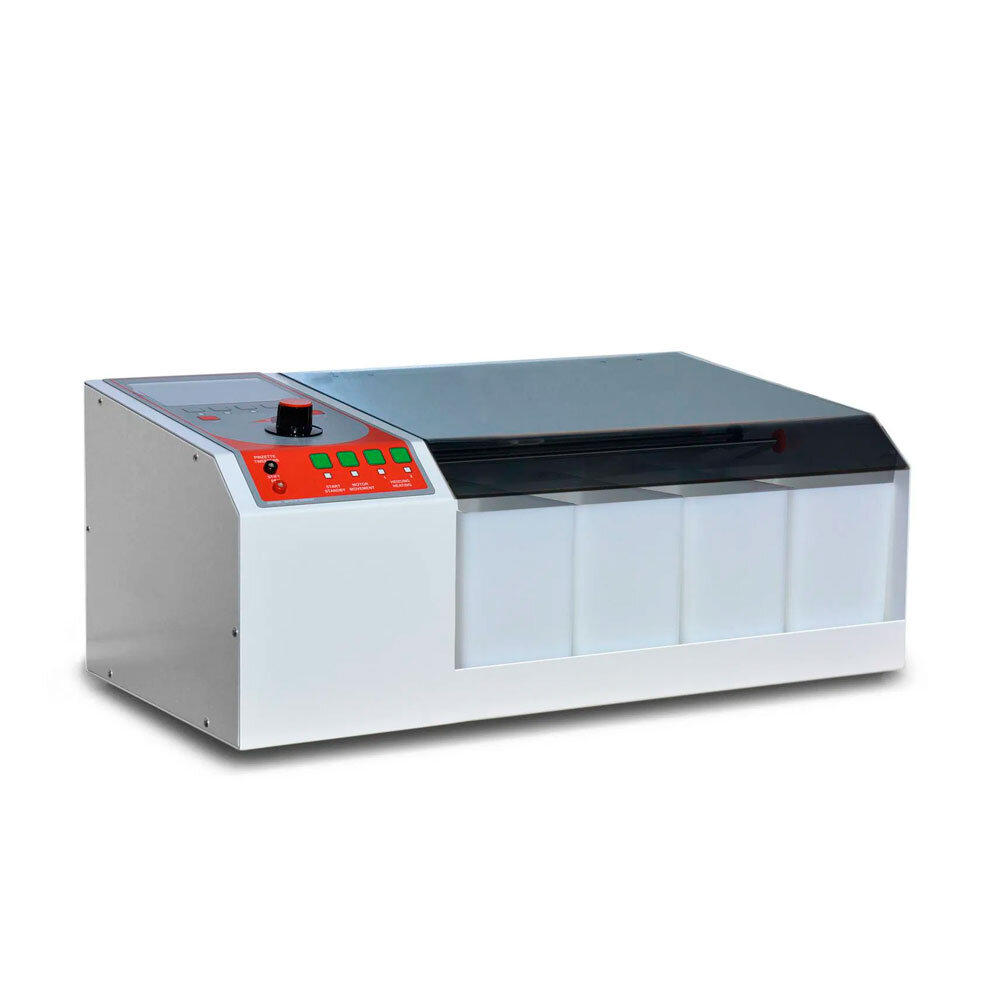

The Comfort II Digital is a programmable small-size electroplating unit which can be used for all galvanic baths e.g. electrolytic degreasing, gold plating baths, bright silver and rhodium baths, palladium or ruthenium baths as well as for non precious metals like copper.

The unit has a volume of 1.5 liter in 4 active and 4 cleaning tanks. Comfort II Digital has an integrated goods movement and a pen plating connection.

The machine is characterized by it's user friendliness and the easy handling. Preinstalled electroplating programs for several coating processes define a new dimension for easy and high quality plating. It has an integrated timer that stops processes automatically and an ampere minute counter that helps to calculate the precious metal consumption.

The machine menu is available in several european languages.

New programs can be installed.

Technical details:

• Bath volume: 4x1,5 l working tanks + 4x 1,5 l rinsing tanks
• Bath dimensions: 150x100x150 mm
• Rectifier: 15V/ 15A
• Temperature regulation: adjustable 0° to 100°C
• Controlled heating: 2x200W
• Supply voltage: 230V/ 50Hz, 120V/ 60Hz
• Main fuse: 2,5A slow-blow, 250V ~, 5*20 mm
• Dimension (WxDxH): 700 x 320 x 250 mm
• Weight: 18 kg
